Cable-stayed bridges are among the most recognisable and efficient long-span bridge structures in modern civil engineering. Their characteristic inclined cables connect the bridge deck directly to one or more pylons, creating a structural system in which the deck, stay cables and pylons work together to carry loads safely to the foundations.

Unlike a conventional girder bridge, where the deck carries most of the bending forces, a cable-stayed bridge transfers a significant portion of the deck load through the stay cables to the pylons. This allows engineers to achieve longer spans while maintaining a relatively slender deck.

Designing a cable-stayed bridge, however, requires much more than simply selecting cable sizes. The engineer must establish the bridge geometry, determine cable forces, design the deck and pylons, consider nonlinear behaviour, analyse construction stages and check the structure under traffic, wind, temperature and seismic actions.

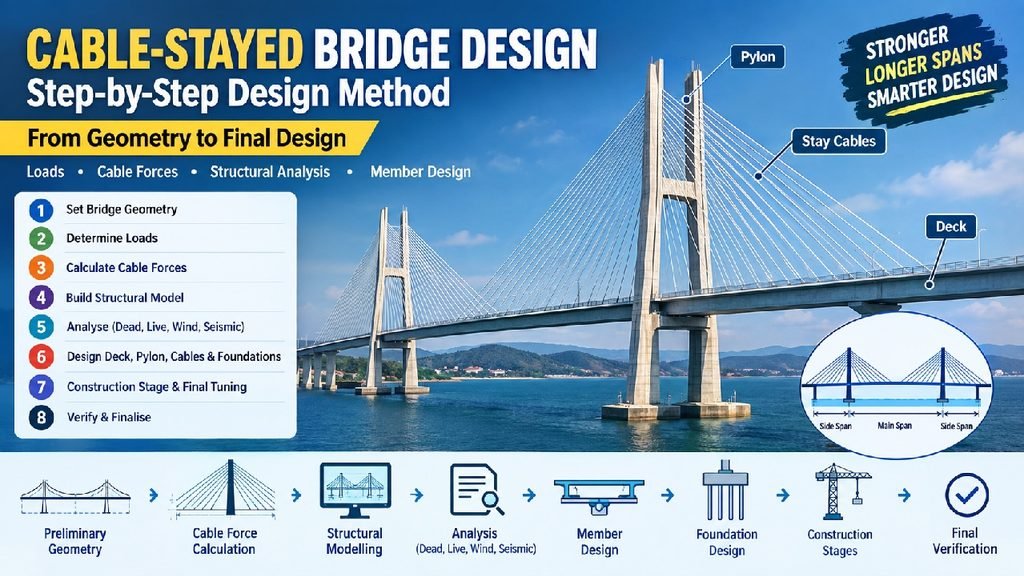

This article presents a practical step-by-step method for cable-stayed bridge design, including preliminary sizing, cable-force calculations, structural modelling and major design checks.

1. What Is a Cable-Stayed Bridge?

A cable-stayed bridge generally consists of three primary structural components:

Deck
Pylon or tower
Stay cables

The stay cables are connected between the deck and pylons. The cables transfer vertical loads from the deck to the pylons, while the pylons transfer these forces to the foundations.

The basic load-transfer mechanism can be understood as:

Traffic/Dead Load → Deck → Stay Cables → Pylon → Foundation → Ground

The cable forces also introduce horizontal components into the deck. These horizontal components produce compression in the deck and are an important part of cable-stayed bridge behaviour.

2. Why Are Cable-Stayed Bridges Used?

Cable-stayed bridges are particularly attractive when a project requires a relatively long main span but a suspension bridge is unnecessary or uneconomical.

Some important advantages are:

Efficient load-carrying system
Long main-span capability
Relatively shallow deck
Attractive architectural appearance
Good structural stiffness
Suitable for free-cantilever construction
Efficient use of high-strength cables
Possibility of controlling deck forces through cable stressing

However, the system is also highly sensitive to:

Cable stiffness
Cable geometry
Pylon stiffness
Deck stiffness
Construction sequence
Temperature
Wind
Cable force variation
Differential support movement

Therefore, cable-stayed bridges normally require a detailed structural analysis rather than a simple static calculation.

3. Main Components of a Cable-Stayed Bridge

3.1 Deck

The deck carries:

Self-weight
Wearing course
Traffic loads
Pedestrian loads where applicable
Wind loads
Temperature effects
Construction loads

The deck can be constructed using reinforced concrete, prestressed concrete, structural steel or a composite system.

One of the major advantages of the cable system is that the deck can be significantly shallower than a conventional long-span girder.

3.2 Pylon

The pylon is the main vertical structural element supporting the stay cables.

It transfers the vertical components of cable forces toward the foundation.

Depending on the bridge arrangement, pylons can have different shapes, such as:

Single vertical tower
Twin vertical towers
A-shaped tower
H-shaped tower
Inverted-Y tower

The pylon also provides lateral stability to the bridge system.

3.3 Stay Cables

Stay cables provide direct support to the deck.

Depending on the bridge geometry, the cables may be arranged as:

Fan arrangement

The cables converge toward a relatively small region near the top of the pylon.

Harp arrangement

The cables are approximately parallel to each other.

Semi-fan arrangement

This is a combination of the fan and harp arrangements and is widely useful from both structural and architectural perspectives.

4. Preliminary Bridge Geometry

Before starting the detailed analysis, the engineer must establish the preliminary geometry.

For a typical three-span cable-stayed bridge:

Side Span + Main Span + Side Span

The main span is usually significantly longer than the side spans.

The source material indicates that side spans of approximately 40% of the main span can be considered as a useful preliminary arrangement, although the final ratio depends on the complete structural system and project requirements.

For example, if:

Main span = 300 m

then an initial side-span estimate could be:

Side span ≈ 0.40 × 300 = 120 m

Therefore:

120 m + 300 m + 120 m

would be a reasonable preliminary geometry for study.

This is only a preliminary proportion and should not be treated as a mandatory design requirement.

5. Preliminary Pylon Height

Pylon height is one of the most important parameters affecting cable inclination and cable forces.

A useful preliminary proportion mentioned in the source material is:

Pylon height above deck / Main span ≈ 1/5

Therefore, for:

Main span = 300 m

a preliminary pylon height above the deck could be:

300/5 = 60 m

The actual pylon height must subsequently be optimized based on:

Cable angle
Cable forces
Deck forces
Pylon forces
Architectural requirements
Wind behaviour
Construction requirements

6. Cable Spacing

Cable spacing determines how much deck load is transferred to each stay cable.

For preliminary design, cable spacing of approximately:

5–8 m

can be considered based on the source material.

Smaller cable spacing generally provides a more uniform support to the deck and can reduce local deck bending.

However, increasing the number of cables also increases:

Anchorage requirements
Cable protection requirements
Construction complexity
Inspection and maintenance requirements

Therefore, cable spacing should be optimized rather than selected solely on structural grounds.

7. Preliminary Deck Depth

The deck depth is influenced by:

Main span
Traffic loading
Cable arrangement
Deck stiffness
Torsional requirements
Construction method

The source material indicates a preliminary deck span-to-depth ratio of approximately:

L / D ≈ 250

where:

L = relevant span
D = deck depth

For example, if a preliminary span of 300 m were directly used:

D ≈ 300/250 = 1.20 m

However, this should only be treated as an initial estimate. The final deck depth depends strongly on the actual bridge system and should be established through structural analysis.

8. Determine the Design Loads

The next step is to establish all loads acting on the bridge.

These normally include:

Permanent loads

Deck self-weight
Wearing course
Kerbs
Crash barriers
Utilities
Drainage systems
Cable self-weight
Pylon self-weight
Other permanent components

Variable loads

Vehicular live load
Pedestrian load
Braking and acceleration
Centrifugal forces
Other traffic-related actions

Environmental loads

Wind
Temperature
Earthquake
Seismic effects
Water/current effects where applicable

Construction loads

Form travellers
Temporary supports
Construction equipment
Segment loads
Temporary cable forces

The governing bridge code and project specifications must be used for the final load values and combinations.

9. Establish Stay Cable Geometry

For every stay cable, determine:

Deck anchorage coordinate
Pylon anchorage coordinate
Horizontal projection
Vertical difference
Cable length
Cable inclination

The cable angle can be calculated approximately as: $\theta = \tan^{-1}\left(\frac{\Delta z}{\Delta x}\right)$

where:

θ = cable inclination
Δz = vertical difference between deck and pylon anchorage
Δx = horizontal projection

Cable length can be estimated as: $L_c=\sqrt{(\Delta x)^2+(\Delta z)^2}$

These values are required for calculating preliminary cable forces.

10. Preliminary Cable Force Calculation

One of the most important preliminary calculations is determining the force in each stay cable.

Suppose:

Deck load = w kN/m
Cable spacing = s m

The approximate tributary load carried by one cable is: $W_i=w\times s$

The vertical component of cable force must approximately balance this load: $T\sin\theta=W_i$

Therefore: $\boxed{T=\frac{W_i}{\sin\theta}}$

where:

T = cable tension
Wi = tributary vertical load
θ = cable inclination

The horizontal component is: $H=T\cos\theta$

or: $\boxed{H=W_i\cot\theta}$

This horizontal component introduces compression into the deck.

11. Example Cable Force Calculation

Consider a preliminary cable with:

Deck load: $w=100\;kN/m$

Cable spacing: $s=6\;m$

Therefore: $W_i=100\times6$ $W_i=600\;kN$

Assume: $\theta=30^\circ$

The approximate cable tension is: $T=\frac{600}{\sin30^\circ}$ $\boxed{T=1200\;kN}$

The vertical component is: $V=1200\sin30^\circ$ $V=600\;kN$

The horizontal component is: $H=1200\cos30^\circ$ $\boxed{H\approx1039\;kN}$

Therefore, a cable carrying approximately 600 kN of vertical load at an inclination of 30° would have a preliminary tension of about 1200 kN.

This is a preliminary hand calculation. It is not the final cable force because the actual force depends on the complete structural system, stiffness, prestressing, construction sequence and load combinations.

12. Why Cable Angle Is Important

The cable angle has a major effect on cable tension.

From: $T=\frac{W}{\sin\theta}$

it can be seen that a flatter cable produces a higher tension for the same vertical load.

For example, if: $W=600\;kN$

then:

At 30°

$T=1200\;kN$

At 45°

$T=\frac{600}{0.707}$ $T\approx849\;kN$

Therefore, increasing the cable angle can substantially reduce the cable tension.

However, cable geometry cannot be selected based only on cable force. Pylon height, deck compression, architectural constraints and construction requirements must also be considered.

13. Initial Cable Prestressing

A cable-stayed bridge is normally not simply constructed and then loaded.

The stay cables are stressed during construction to achieve the desired structural geometry and force distribution.

The initial cable force may be selected to:

Control deck deflection
Reduce bending moments
Maintain the desired deck profile
Control pylon deformation
Balance permanent loads
Achieve the target construction geometry

This makes cable-stayed bridge design an iterative process.

The engineer selects an initial cable force, analyses the bridge, checks the resulting geometry and forces, and then adjusts the cable forces.

14. Important Concept: Pylon Balance

Under permanent loading, the horizontal components of the main-span and backstay cable forces should be reasonably balanced.

The main-span cables generate horizontal forces toward the main span, while the backstays provide balancing forces in the opposite direction.

A simplified conceptual condition is: $\sum H_{main}\approx\sum H_{back}$

When these forces are properly balanced, unnecessary bending of the pylon can be reduced.

This is one of the key principles behind cable-stayed bridge design.

15. Structural Modelling

After preliminary calculations, the bridge is developed into a structural analysis model.

A simplified global model can contain:

Beam elements for deck
Beam elements for pylons
Beam elements for piers
Cable/truss elements for stay cables
Appropriate supports
Pylon-deck connections
Cable anchorage locations

For preliminary studies, a line-element model is often sufficient.

For detailed local investigations, shell or solid finite elements may be required.

16. 2D or 3D Model?

A 2D model can be useful when:

The bridge has a single cable plane
Loading is primarily symmetrical
Only vertical global behaviour is being studied

However, a 3D model is generally required for realistic assessment of a bridge with two cable planes, especially when considering:

Torsion
Eccentric traffic loading
Wind
Seismic loading
Differential effects
Lateral behaviour

Therefore, a practical design workflow is often:

2D preliminary model → 3D global model → detailed local FE model

17. Cable Nonlinearity

Stay cables are not always adequately represented by simple linear truss behaviour.

Important nonlinear effects include:

Large displacement
Cable sag
Geometric stiffness
P-Delta effects
Interaction between cable force and structural deformation

Cable sag can become important for sufficiently long cables.

For preliminary models, simplified cable behaviour may be acceptable, but the final analysis should use an appropriate cable formulation based on the project requirements and governing design standards.

18. Dead Load Analysis

The first major analysis stage is the permanent-load analysis.

Apply:

Deck self-weight
Pylon self-weight
Cable self-weight
Wearing course
Barriers
Utilities
Other permanent loads

The engineer should review:

Deck bending moments
Deck axial force
Deck shear
Cable forces
Pylon axial forces
Pylon bending moments
Vertical displacement
Horizontal displacement

The dead-load analysis is particularly important because it establishes the basic equilibrium of the cable-stayed system.

19. Live Load Analysis

Traffic loading should be placed at critical positions.

Unlike a conventional bridge, where critical live-load positions can sometimes be identified relatively easily, cable-stayed bridges have a highly interactive structural system.

Different live-load arrangements can produce critical:

Deck bending
Deck axial force
Cable stress
Pylon bending
Pylon shear
Torsion

Therefore, multiple load positions and combinations should be investigated.

20. Deck Design

The deck is subjected to a combination of:

Bending
Shear
Axial compression
Torsion
Local effects around cable anchorages

The horizontal components of cable forces introduce significant axial compression into the deck.

The deck design should therefore consider combined: $N+M+V+T$

where:

N = axial force
M = bending moment
V = shear force
T = torsion

The final reinforcement or steel section is selected after obtaining the governing envelopes from the global analysis.

21. Pylon Design

The pylon primarily receives the vertical components of the stay cable forces.

A preliminary estimate of the pylon axial load can be expressed as: $N_p\approx\sum V_i$

where: $V_i=T_i\sin\theta_i$

The pylon must be checked for:

Axial compression
Bending
Shear
Buckling
P-Delta effects
Construction-stage forces
Wind
Seismic effects
Local stresses near cable anchorages

For reinforced concrete pylons, second-order effects can be particularly important because of the large axial compression.

22. P-Delta Analysis

A cable-stayed pylon can carry very large axial compression.

If the pylon deflects laterally, the axial load produces an additional moment.

Conceptually: $M_2=M_1+N\Delta$

where:

M1 = first-order moment
N = axial force
Δ = lateral displacement
M2 = second-order moment

This is commonly referred to as the P-Delta effect.

For tall and slender pylons, second-order analysis should therefore be properly considered.

23. Stay Cable Design

Cable design must satisfy several requirements.

Important checks include:

Ultimate limit state

The cable must have adequate resistance against the governing ultimate tension.

Serviceability

Cable stress and bridge deformation must remain within applicable limits.

Fatigue

Repeated traffic loading produces variations in cable stress.

The stress range is: $\Delta\sigma=\sigma_{max}-\sigma_{min}$

Fatigue can become one of the governing considerations for stay cables.

Constructability

The cable must be installable, adjustable and properly anchored.

Replaceability

Modern cable-stayed bridge systems should consider inspection, maintenance and eventual cable replacement.

The exact allowable cable stresses and fatigue criteria must be taken from the governing bridge/cable design standard and project specifications rather than applying a generic percentage of ultimate tensile strength.

24. Cable Anchorage Design

Cable forces are transferred into the deck and pylon through anchorage systems.

The anchorage region can experience:

High concentrated forces
Local compression
Bursting stresses
Splitting stresses
Local bending
Shear stresses

Therefore, the anchorage zone often requires detailed finite-element investigation.

A global beam model alone may not adequately represent these local effects.

25. Foundation Design

The pylon transfers large forces to the foundation.

The foundation design must consider:

Vertical compression
Horizontal forces
Bending moments
Uplift where applicable
Seismic effects
Soil stiffness
Settlement
Differential settlement
Pile capacity
Group effects
Lateral pile behaviour

For large cable-stayed bridges, deep foundations such as pile foundations are commonly investigated.

The foundation must be designed using the governing geotechnical and structural design criteria.

26. Construction Stage Analysis

Construction-stage analysis is one of the most important aspects of cable-stayed bridge design.

A bridge that is safe in the final configuration may experience critical forces during construction.

Typical construction stages include:

Construction of foundations
Construction of piers
Construction of pylons
Construction of initial deck segments
Installation of stay cables
Cantilever deck construction
Cable stressing
Deck closure
Final cable adjustment
Application of permanent loads

At every stage, the engineer should monitor:

Cable forces
Deck displacement
Pylon displacement
Pylon stresses
Construction reactions

27. Final Cable Tuning

After constructing the complete analytical model, the initial cable forces are adjusted.

The objective is generally to achieve the desired:

Deck profile
Pylon geometry
Permanent-load bending moment distribution
Cable-force distribution
Support reactions

This process is usually iterative.

A simplified workflow is:

Assume cable forces → Analyse → Check geometry → Adjust cable forces → Analyse again

The process continues until the desired equilibrium state is achieved.

28. Temperature Effects

Cable-stayed bridges are sensitive to temperature because different structural components can experience different temperature changes.

Temperature analysis should consider:

Uniform temperature change
Temperature gradients
Differential temperature
Cable temperature
Deck temperature
Pylon temperature

Temperature effects can significantly change:

Cable tension
Deck displacement
Pylon forces
Support reactions

29. Wind Analysis

Because cable-stayed bridges are flexible structures with large exposed surfaces, wind analysis is important.

The analysis may include:

Static wind load
Gust effects
Wind-induced vibration
Cable vibration
Deck aerodynamic stability
Pylon aerodynamic effects

For long-span bridges, aerodynamic and wind-tunnel studies may be required depending on the bridge size and governing standards.

30. Seismic Analysis

For bridges located in seismic regions, seismic analysis should include the complete bridge system.

Important components include:

Mass distribution
Pylon stiffness
Deck stiffness
Cable stiffness
Pier stiffness
Foundation flexibility where applicable
Damping
Soil-structure interaction where required

Typical analysis methods may include:

Modal analysis

Used to determine:

Natural frequencies
Mode shapes
Effective modal mass

Response spectrum analysis

Used to evaluate structural response under the prescribed seismic spectrum.

Time-history analysis

May be required for more advanced studies or when specified by the design criteria.

Seismic load combinations should be established according to the governing bridge seismic provisions.

31. Cable Forces Under Seismic Loading

Cable forces can vary significantly during seismic excitation.

Therefore, the engineer should review: $T_{min}$

and $T_{max}$

for critical combinations.

The analysis should ensure that cables remain within the applicable design limits and that excessive deformation does not occur.

32. Typical Design Workflow

The complete cable-stayed bridge design process can be summarized as follows:

Step 1: Collect project requirements

↓

Step 2: Select bridge arrangement

↓

Step 3: Determine main and side spans

↓

Step 4: Select pylon locations

↓

Step 5: Determine preliminary pylon height

↓

Step 6: Select cable arrangement

↓

Step 7: Select cable spacing

↓

Step 8: Estimate deck depth

↓

Step 9: Calculate permanent loads

↓

Step 10: Calculate traffic and environmental loads

↓

Step 11: Establish cable geometry

↓

Step 12: Calculate preliminary cable forces

↓

Step 13: Estimate initial cable prestressing

↓

Step 14: Develop the global structural model

↓

Step 15: Perform dead-load analysis

↓

Step 16: Adjust cable forces

↓

Step 17: Perform live-load analysis

↓

Step 18: Design the deck

↓

Step 19: Design the pylon

↓

Step 20: Design the stay cables

↓

Step 21: Design cable anchorages

↓

Step 22: Design piers and foundations

↓

Step 23: Perform construction-stage analysis

↓

Step 24: Check P-Delta and nonlinear effects

↓

Step 25: Perform temperature and wind analysis

↓

Step 26: Perform seismic analysis

↓

Step 27: Generate final force envelopes

↓

Step 28: Complete reinforcement/detailing

↓

Step 29: Final design verification

33. Cable-Stayed Bridge Design: Important Equations

For quick reference, some preliminary equations are given below.

Cable angle

$\boxed{\theta=\tan^{-1}\left(\frac{\Delta z}{\Delta x}\right)}$

Cable length

$\boxed{L_c=\sqrt{\Delta x^2+\Delta z^2}}$

Tributary load

$\boxed{W_i=w\,s_c}$

Preliminary cable tension

$\boxed{T=\frac{W_i}{\sin\theta}}$

Vertical cable component

$\boxed{V=T\sin\theta}$

Horizontal cable component

$\boxed{H=T\cos\theta=W_i\cot\theta}$

Approximate pylon axial force

$\boxed{N_p\approx\sum V_i}$

Cable stress

$\boxed{\sigma_c=\frac{T}{A_c}}$

Stress range

$\boxed{\Delta\sigma=\sigma_{max}-\sigma_{min}}$

Second-order moment

$\boxed{M_2=M_1+N\Delta}$

These equations are useful for preliminary design and checking, but the final design should be based on the complete structural analysis and the applicable design standards.

34. STAAD.Pro or MIDAS Civil Modelling Approach

For engineers working with software such as STAAD.Pro or MIDAS Civil, a practical modelling sequence is:

Step 1 — Create geometry

Define:

Deck nodes
Pylon nodes
Pier nodes
Cable anchorage nodes

Step 2 — Define structural members

Create:

Deck beam elements
Pylon beam elements
Pier elements

Step 3 — Define stay cables

Use appropriate cable/truss elements and ensure that their stiffness and nonlinear behaviour are represented appropriately.

Step 4 — Define supports

Model:

Foundation restraints
Bearings
Expansion conditions
Lateral restraints

according to the actual bridge structural system.

Step 5 — Apply self-weight

Include the weight of:

Deck
Pylon
Piers
Cables

Step 6 — Apply cable prestressing

Initial cable forces should be introduced according to the selected construction-stage methodology.

Step 7 — Run construction stages

Activate structural components in the actual construction sequence.

Step 8 — Apply traffic loading

Run the required traffic load positions and combinations.

Step 9 — Apply wind and temperature

Include appropriate environmental actions.

Step 10 — Perform seismic analysis

Use the required modal and seismic analysis procedures.

Step 11 — Extract design envelopes

Review:

Deck N
Deck M
Deck V
Deck T
Pylon N
Pylon M
Pylon V
Cable forces
Support reactions
Displacements

35. Common Mistakes in Cable-Stayed Bridge Design

Several mistakes can lead to unrealistic results.

Mistake 1: Designing cables independently

Cable force cannot be finalized without considering the deck-pylon-cable interaction.

Mistake 2: Ignoring construction stages

The final structure is not the only condition that needs to be checked.

Mistake 3: Using only a 2D model

A 2D model may not capture torsion and asymmetric effects in a bridge with two cable planes.

Mistake 4: Ignoring cable sag

For sufficiently long cables, sag can affect cable stiffness and structural response.

Mistake 5: Ignoring P-Delta

Tall pylons carrying large compression can develop significant second-order effects.

Mistake 6: Checking only maximum cable tension

Cable fatigue depends strongly on stress variation, not just maximum force.

Mistake 7: Ignoring anchorage-zone stresses

Local cable anchorage forces can be much more concentrated than the global beam model indicates.

Mistake 8: Treating preliminary equations as final design

The simple cable-force equation is excellent for preliminary sizing, but the final force must come from the complete structural system.

36. What Makes Cable-Stayed Bridge Design Different?

The most important difference between a cable-stayed bridge and a conventional bridge is that the structural system can be actively controlled through cable forces.

The engineer does not simply calculate loads and design members.

Instead, the design becomes an iterative process:

Geometry → Cable Forces → Structural Response → Cable Adjustment → Structural Response → Final Equilibrium

This interaction between analysis, geometry and construction is what makes cable-stayed bridge design both challenging and interesting.

37. Final Checklist for Cable-Stayed Bridge Design

Before finalizing the design, the engineer should verify:

Geometry

Main span
Side spans
Pylon height
Cable spacing
Cable inclination
Deck depth

Global structural behaviour

Dead-load response
Live-load response
Cable forces
Deck N-M-V-T
Pylon N-M-V
Deflections

Cable design

Maximum tension
Minimum tension
Stress range
Fatigue
Cable stiffness
Cable sag
Anchorage

Pylon

Axial compression
Bending
Shear
Buckling
P-Delta
Wind
Seismic

Deck

Flexure
Shear
Axial force
Torsion
Local anchorage effects
Serviceability

Foundation

Vertical capacity
Lateral capacity
Moment
Settlement
Seismic effects

Construction

Construction stages
Temporary conditions
Cable stressing sequence
Deck closure
Final cable tuning

Conclusion

The design of a cable-stayed bridge is a combination of structural mechanics, cable engineering, finite-element analysis and construction-stage control.

The three major components—the deck, pylon and stay cables—must be designed as one integrated structural system.

The preliminary design can begin with relatively simple relationships such as: $T=\frac{W}{\sin\theta}$

and $H=W\cot\theta$

to estimate cable forces. However, the final cable forces and structural member forces should be obtained through an appropriate global analysis that accounts for structural stiffness, cable behaviour, construction stages and the required load combinations.

A reliable design workflow therefore follows:

Preliminary geometry → Preliminary cable forces → Initial prestressing → Global FEM model → Construction-stage analysis → Cable adjustment → Final load analysis → Member design → Foundation design → Final verification

For an actual bridge project, the numerical values, load combinations, allowable stresses, fatigue criteria and detailing requirements must always be taken from the applicable bridge design codes, project specifications and approved design basis.

The PDFs used for this article emphasize the same central principle: a cable-stayed bridge should be treated as an integrated deck–cable–pylon system, rather than as three independently designed components.

Post Views: 3
